Product Overview

The foam metal alloy filled wide-temperature silicone rubber wheel damper is a composite vibration-damping and buffer component. It adopts open-cell foam nickel, foam nickel-copper and other alloys as the internal energy-absorbing skeleton, compounded externally with wide-temperature weather-resistant silicone rubber matrix and integrally molded. It is suitable for wheel-side vibration damping scenarios of rail vehicles, construction machinery, new energy heavy-duty vehicles and automobile suspensions.

Combining two core advantages — porous energy absorption of foam metal and wide-temperature elasticity of silicone rubber, this product solves common industry pain points of traditional rubber dampers, such as performance failure at extreme temperatures, narrow vibration reduction frequency band, easy cracking under fatigue and low load-bearing limit. It achieves stable damping and vibration absorption across an ultra-wide temperature range of -60℃ to 220℃.

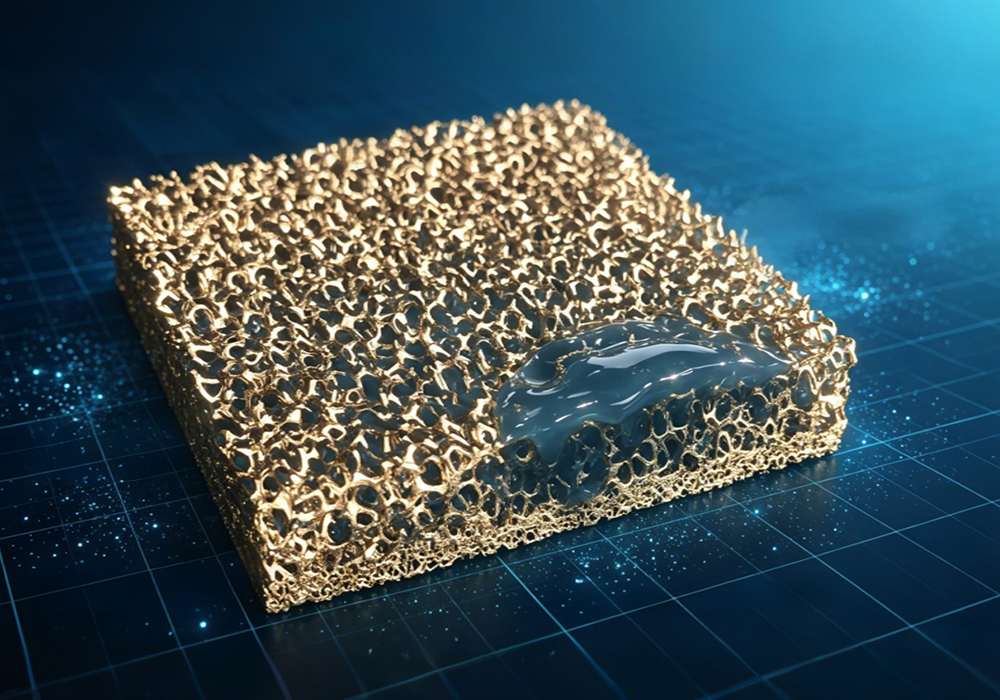

① Inner Core: Porous Foam Metal Alloy Skeleton

Open-cell foam nickel, foam nickel-copper and other alloys with high porosity (70%~92%) featuring a 3D interconnected hollow pore structure.

● Function: Under impact loads, pores absorb vibration energy via extrusion, friction and plastic deformation; porous channels distribute stress to improve bearing stiffness. The metal skeleton compensates for the defects of pure rubber, i.e., softening at high temperature and hardening at low temperature.

● Manufacturing Process: Preformed porous blanks are fully infiltrated by silicone rubber during vulcanization, forming a mechanical interlocking composite layer between rubber and metal without delamination or debonding.

② Matrix: Wide-Temperature Modified Silicone Rubber

Special methylphenyl silicone rubber substrate resistant to extreme high and low temperatures, filled with thermal conductive and damping modified fillers to adapt to frigid and high-temperature working conditions:

● Remains elastic without hardening or cracking at -60℃ (low temperature);

● No melting above 200℃, with damping coefficient attenuation less than 15% at high temperature;

● Resistant to oil, ozone and UV aging, free of cracking after long-term outdoor and heavy-duty service.

③ Auxiliary Matching Structure

Metal mounting sleeves pre-embedded at both ends to match installation interfaces of wheel hubs and suspensions. A wear-resistant anti-fouling coating is applied on the surface to resist sand abrasion and corrosion from chemical media.

Key Working Principles

① Dual Energy Absorption Mechanism of Composite Damping

● Silicone rubber matrix: Dissipates energy through friction of polymer chains under high-frequency micro-vibration to suppress resonance noise.

● Foam metal inner core: Under low-frequency heavy impacts, porous metal undergoes elastic and plastic deformation, and friction between pore walls absorbs large impact kinetic energy to buffer shocks during wheel startup, braking and bumpy driving.

② Wide-Temperature Adaptation Mechanism

③ Stress Distribution Mechanism

Porous foam metal evenly distributes concentrated wheel loads over the entire cross-section of the damper, reducing local stress on rubber and greatly extending fatigue service life.

Core Performance Advantages

① Ultra-Wide Stable Operating Temperature Range

② High Vibration Reduction & Low Resonance

Suppresses full-band wheel vibration from 10 Hz to 2000 Hz covering both high and low frequencies. Its vibration reduction efficiency is 40% higher than that of pure rubber dampers, effectively lowering vehicle noise and hub wear.

③ High Strength & Long Fatigue Life

The foam metal skeleton enhances overall load capacity by 60%. No cracking or delamination occurs after more than 1 million reciprocating impact fatigue tests, with a service life 2~3 times longer than traditional rubber dampers.

④ Lightweight & Thermal Dissipation

Foam metal has a density of only 0.3~2.5 g/cm³, making the overall product lighter than solid metal vibration damping parts. The porous metal thermal conduction channels rapidly remove braking heat from wheels to prevent rubber aging and failure caused by high temperature.

⑤ Weather & Corrosion Resistance

The silicone rubber matrix resists acids, alkalis, engine oil, ozone and ultraviolet rays. Anti-corrosion treatment can be applied to foam metal for long-term service in mining, chemical and coastal high salt-fog environments.

⑥ Customizable Damping Stiffness

Damping stiffness can be precisely tailored to meet the vibration reduction demands of light passenger vehicles, heavy-duty trucks, rail transit trains and mining machinery wheels by adjusting foam metal porosity, alloy material and silicone rubber hardness.

Typical Application Scenarios

① Rail Transit: Axle box dampers for subways and light rails to reduce vibration and noise when vehicles pass rail joints and turn corners.

② Commercial Heavy-Duty Vehicles: Wheel-side vibration damping and buffering for heavy trucks and trailers under high-temperature braking conditions.

③ New Energy Vehicles: Hub dampers for electric buses and mining electric dump trucks to suppress high-frequency vibration of motors.

④ Construction Machinery: Wheel buffer dampers for loaders, excavators and forklifts for outdoor construction sites with extreme high and low temperatures.

⑤ Special Equipment: Vibration damping components for wheels of polar operation vehicles and transfer vehicles in high-temperature workshops.

Production Process

① Prefabrication of foam metal alloy: Fabricate open-cell foam nickel, foam nickel-copper and other alloys with specified porosity via infiltration casting, then cut to shape.

② Skeleton pretreatment: Surface roughening and primer coating to improve bonding strength with silicone rubber.

③ Cladding vulcanization: Place foam metal skeleton into molds, inject wide-temperature silicone rubber and conduct integrated high-temperature vulcanization to fully infiltrate metal pores with rubber.

④ Precision machining: Drill holes for embedded sleeves and trim overall dimensions.

⑤ Performance testing: High/low temperature damping test, fatigue impact test, delamination & sealing inspection.

⑥ Surface protection for finished products, packaging and delivery.

Reference Technical Parameter Table

Summary of Advantages vs. Traditional Pure Rubber Dampers

① Wider temperature range: Traditional rubber fails between -30℃ and 80℃, while this product adapts to both extreme cold and high temperature.

② Superior vibration reduction: Dual energy absorption by porous metal and rubber greatly improves impact buffering capacity.

③ Longer service life: Metal skeleton distributes stress with excellent tear and fatigue resistance.

④ Better heat dissipation: Solves rubber aging caused by accumulated heat during wheel braking.

⑤ Strong environmental adaptability: Universally applicable to mining sites, polar regions, high-temperature workshops and coastal salt-fog environments.

Selection Guide

① Light passenger vehicles / small electric vehicles: High-porosity open-cell foam nickel / nickel-copper alloy + medium-soft silicone rubber, focusing on noise reduction.

② Heavy trucks & construction machinery: Medium-low porosity aluminum-copper composite foam + high-hardness silicone rubber, focusing on heavy load impact buffering.

③ Rail vehicles: Custom gradient-porosity foam metal to balance high and low frequency vibration suppression.

④ Extreme cold / high-temperature special vehicles: High-phenyl wide-temperature silicone rubber + high thermal conductivity foam metal inner core.
